Description
Fridge Water Filter, Compatible with Samsung DA97-17376B, DA97-08006C, HAF-Qin, HAF-Qin/EXP, SRF630BFH2, SRF644CDLS, SRF645CDBLS, SRF7500SB, SRF7300SA, SRF7500BB, SRF9700BFH, 2 Filters
- [NSF Certification] Tested by NSF 42, DA97-17376B water filter is easy to reduce Chlorine, Taste & Odour, Turbidity, Cysts, Dirt, Rust, impurities, particles & Cloudiness, Lime scale.
- DA97-17376B filter creates better tasting water for drinking and making beverages as well as clean, clearer, healthy ice.
- Compatible with Samsung DA97-17376B, DA97-08006C, HAF-QIN, HAF-QIN/EXP
- Compatible refrigerator model numbers: RF24R7201SL/SA,SRF678CDLS,RF23M8070SG/AA,RF23M8070SR/AA, RF23M8090SG/AA,RF23M8090SR/AA,RF23M8080SR/SA, RF23M8570SG/AA, RF23M8570SR/AA, RF23M8590SG/AA, RF23M8590SR/AA, BRF365200AP/AA, BRF425200AP/AA, RF23M8960S4/AA, RF23M8960MT/AA,SRF630BFH2, RF23M8960S4/AA, RF23M8960MT/AA, BRF365200AP/AA, BRF425200AP/AA, RF23M8580SG/SA, RF22R7551SG/SA, SRF630BFH2, SRF644CDLS, SRF645CDBLS, SRF7500SB, SRF7300SA, SRF7500BB, SRF9700BFH, SRF7500BB, SRF7300SA, SRF7300BA
- [Satisfaction Guarantee] DA97-17376B water filter is backed with top-quality product, prompt service and timely delivery.
Product Description:
This filter (DA97-17376B) is used in French Door and Side-by-Side refrigerators.
Micron Rate: 0.5 Micron.
Operating Temp,.: 38-100°F
Operating Pressure: 30-120 PSI/ 207-824 KPA
Flow Rate: 0.75 GPM/ 2.8 LPM.
NSF Tested Service Life: 300 Gallons or 6 Months.

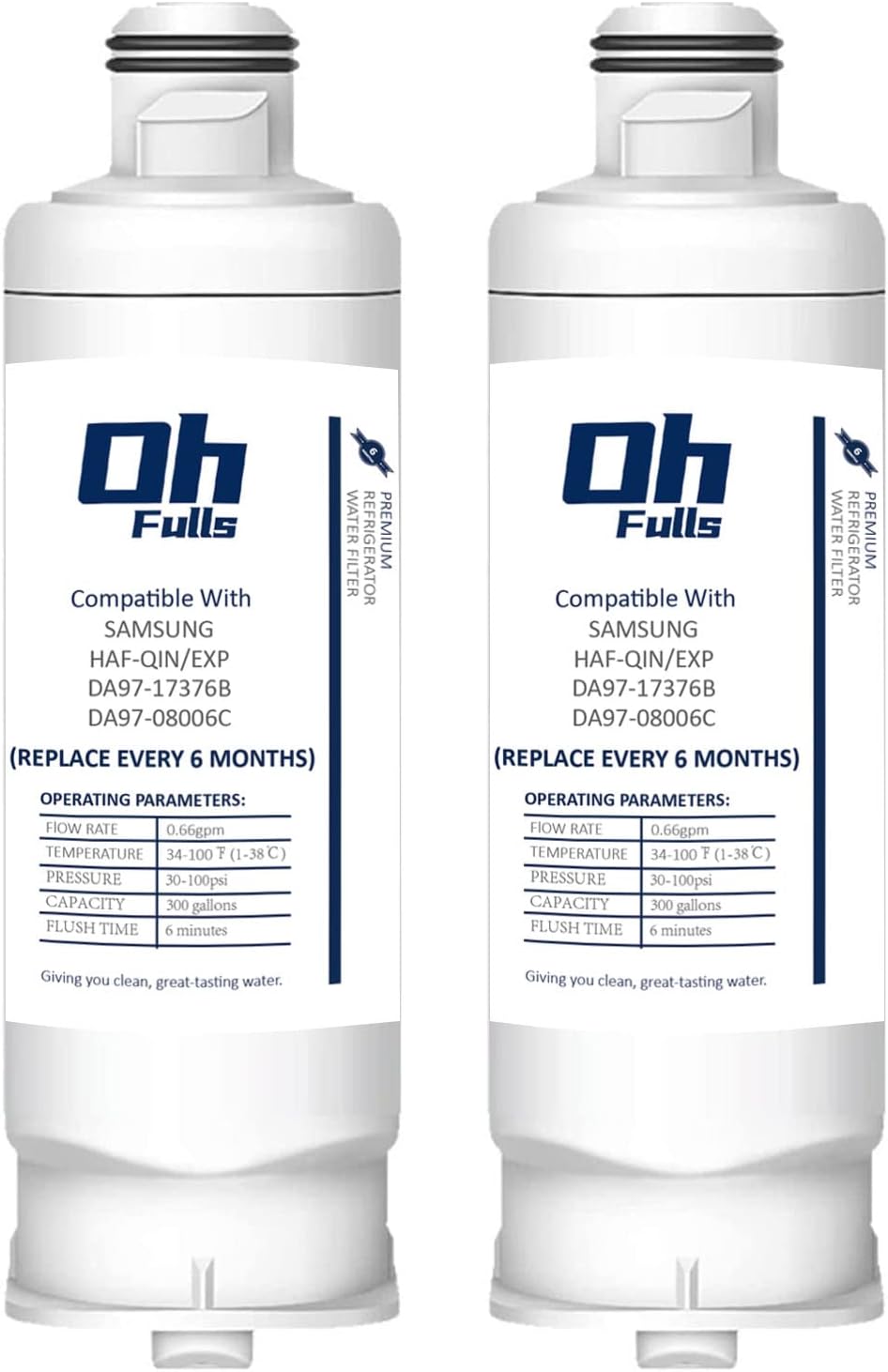

DA97-17376B Refrigerator Water Filter
HAF-QIN | HAF-QIN/EXP
Model Code: HAF-QIN/EXP
For Use in System Model No.: DA97-08006C
Replacement Cartridge Code: DA97-17376B
Compatible Refrigerator Model Numbers:
SRF630BFH2, SRF644CDLS, SRF645CDBLS, SRF7500SB,
SRF7500BB, SRF7300SA, SRF7300BA, RF23M8070SG/AA,
RF23M8070SR/AA, RF23M8090SG/AA, RF23M8090SR/AA, RF23M8570SG/AA,
RF23M8570SR/AA, RF23M8590SG/AA, RF23M8590SR/AA, RF23M8960S4/AA,
RF23M8960MT/AA, BRF365200AP/AA, BRF425200AP/AA, RF23M8580SG/SA
Installation Instructions
1. Shut off the water supply. Then, turn the water filter about 1/4 turn, counter-clockwise.
2. Pull the water filter from the case filter.
*Sometimes, it is hard to disassemble the water filter because impurities in the water cause it to stick. If you are having difficulties, grip the water filter firmly and pull it hard.
*When you pull the water filter, a little water can leak from the opening. This is normal. To minimize the water leaks, keep the filter cartridge horizontal when you pull it.
*To prevent overflow, empty the water tray filter and dry around the filter case.
3. Insert the new filter into the filter case.
4. Push the filter, and then turn it clockwise until it locks.
*The locked symbol should be lined up with the indicator line.
5. Press the alarm/hold 3 sec for Filter Reset The color of indicator changes from red to light off.
6. If you turned off the water supply, turn it back on
Package Included: 2x fridge water filter
